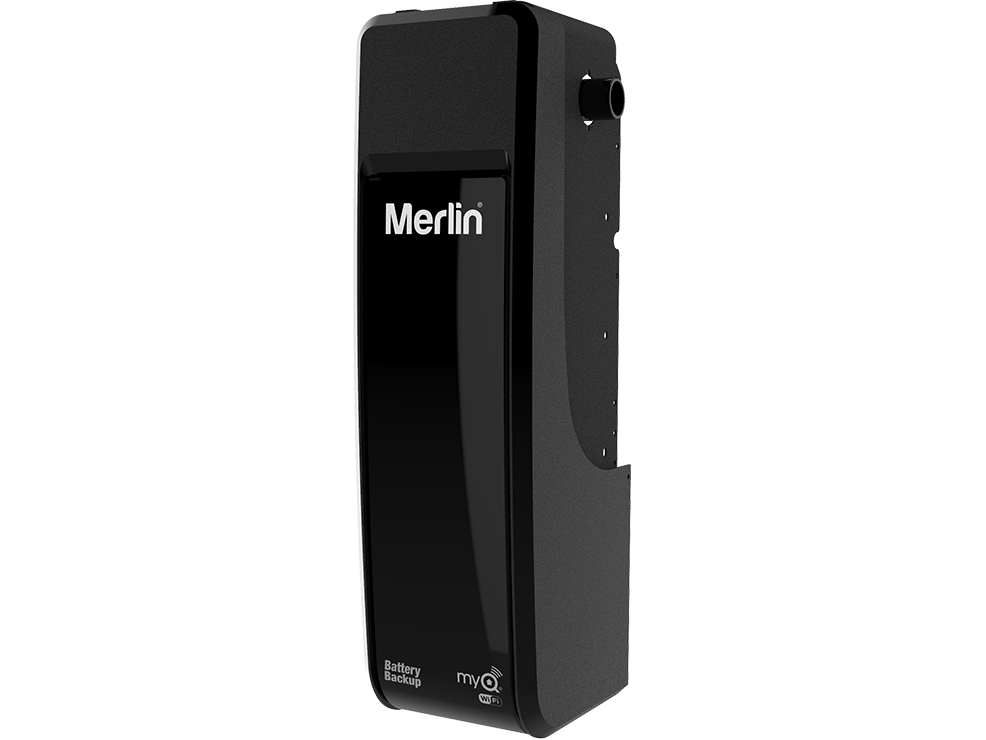

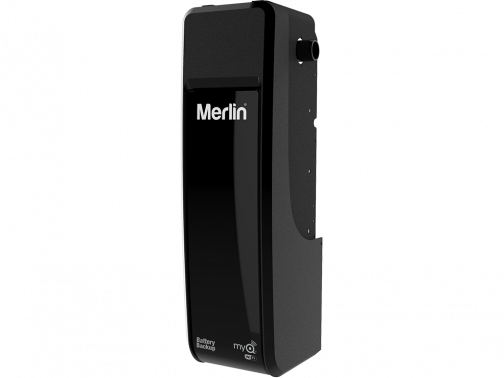

COMMANDER ULTIMATE MJ3800MYQ

* Fully Installed Suggested Retail Price based on a powerpoint being within close proximity, metro install, door moves freely and is in good condition.
* Actual price is provided by the professional dealer and may therefore vary from the suggested retail price.

Open Up Possibilities, Commander Ultimate is the most premium opener within the Merlin sectional range with built-in myQ Wi-Fi & integrated Battery Backup with Security+2.0. Jam packed with many accessories including a myQ remote LED light, Smart Control Panel, Automatic Door Lock, Cable Tension Monitor, 2 x Premium+ remotes.

PRODUCT FEATURES



Smart
convenient_1.jpg MYQ COMPATIBLE TECHNOLOGY
lets users create schedules, monitor, receive alerts and control the garage door opener away from home.(1)
convenient_1.jpg BUILT-IN WI-FI
for the easiest way to connect the garage.
convenient_1.jpg MYQ REMOTE LED LIGHT
Ultra-bright LED light designed to illuminate your garage or workspace. Controlled through your garage door opener, remote control or the myQ app.
SOFT-START AND SOFT-STOP
for smooth operation.
QUIET & RELIABLE
7-YEAR WARRANTY
WALL-MOUNT DESIGN AND QUIET DC MOTOR
virtually eliminates all noise and vibrations through the ceiling and provides smooth operation.
INTEGRATED BATTERY BACKUP
ensures access even when the power is out.
HEAVY-LIFTING POWER
operates doors up to 130 kgs.
SPACE-SAVING DESIGN
reclaims overhead space with wall-mounted design and opens up storage opportunities.
Safe & Secure
SECURITY+ 2.0®
sends a new code with every remote click.
ico_3.jpg PREMIUM AUTOMATIC SAFETY REVERSE
function will allow your garage door to stop and reverse automatically if obstructed going down or stop going up.
MOTION DETECTOR
automatically turns on the light.
TIMER-TO-CLOSE
automatically closes the door after a pre-set amount of time.(1)
AUTOMATIC GARAGE DOOR LOCK
prevents unwanted entry and provides an extra layer of security.
secure_4.jpg THE PROTECTOR SYSTEM™
(Safety IR Beams) auto-reverses the door if there’s an obstruction.
secure_4.jpg AUTOMATIC FORCE SENSING
monitors and adjusts the force needed to open your garage with each operation.
secure_4.jpg MANUAL RELEASE CORD
allows you to open your garage door whenever needed.

(1)Safety IR Beams must be installed to enable the use of Timer-to-Close and full myQ functionality. See User Guide for additional information. Smartphone not included.

MERLIN SAFETY FEATURES

Premium Automatic Safety Reverse

With its automatic safety function your garage door will stop and reverse automatically if obstructed going down or stop going up.

Automatic Force Sensing

Equipped with automatic force sensing, with each operation the garage door opener monitors and adjusts the force needed to open your garage door.

Manual Release

In case of power failure you can simply activate the manual release to open your garage door

SPECIFICATIONS

General

  • 24V DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 16.5m²
  • Max door weight: up to 130kg* with beams installed
  • Max peak pulling force: 600 N
  • 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
  • Up to 40 remote controls, 4 wireless key entry systems and 16 myQ devices
  • Min headroom required: 216mm

Door Specs

  • Maximum lifting under spring tension = 20kg
  • Suitable for steel and timber spring balanced doors

Door Opening and Closing Times

  • Door opening time: 18  seconds
  • Door closing time: 21 seconds
  • Based on a 2.2m high door

Door Height

  • Door height: 3m
  • Door width: 5.5m
  • Double dwelling

INCLUDED ACCESSORIES

  • User-added image 2 x Premium+ Four Button Remote Control (Security+ 2.0 & Security+) (E960M)
  • User-added imagemyQ Remote LED Light (827AU)
  • User-added imageOutdoor Protector System (Safety IR Beams) (774ANZ)
  • User-added imageSmart Control Panel (880AUW)
  • User-added imageAutomatic Door Lock (841AU)
  • User-added imageCable Tension Monitor (041A9264)
  • User-added imageIntegrated Battery Backup (041A6357-2)

DOWNLOADS

Commander Ultimate (MJ3800MYQ) Spec Sheet
